200W 12V Off-Grid Solar Wiring Diagram Printable (1S1P)
Computed 200W 12V off-grid solar system solar diagram: 1S1P array, wire gauges, OCPD, battery arrangement, routed parts and printable files.

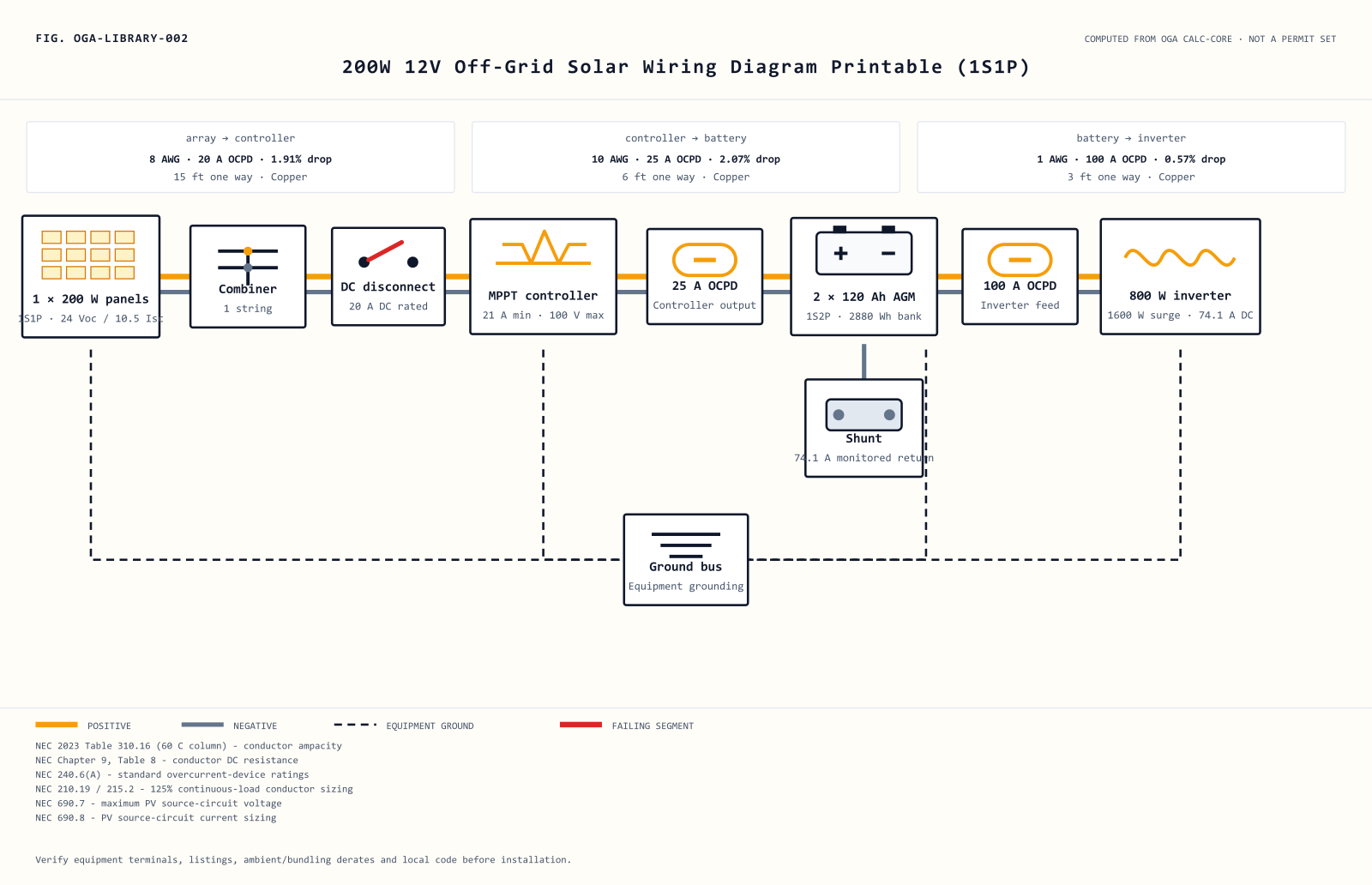

View the scalable diagram inline
What this computed plan shows
Searchers asking for “12v off grid solar wiring diagram” usually need more than a block diagram. This 200W 12V Off-Grid Solar Wiring Diagram Printable (1S1P) therefore fixes the panel count, string arrangement, controller window, storage layout and inverter feed as one computed off-grid solar system example. With 1 panels wired 1S1P, the array totals 200 W and reaches 24 Voc at nameplate conditions.
At the charge controller, the drawing records a 21 A minimum and a 30 V design Voc. Those are different questions: one protects adequate charging output, while the other keeps the 1S1P string below the equipment’s 100 V input limit. Both checks return within for this exact 200W 12V Off-Grid Solar Wiring Diagram Printable (1S1P) state.
On the first two protected runs, the schedule pairs 20 A with 8 AWG copper and 25 A with 10 AWG copper. The corresponding one-way distances are 15 ft and 6 ft, producing 1.91% and 2.07% drop. These values assume the stated conductor material and do not include unverified ambient or bundling derates.
Storage is drawn as 1S2P: 2 AGM units, each 120 Ah. That produces 240 Ah at 12 V and 2,880 Wh nominal. The complete-series-string rule is why the count and arrangement appear together rather than as an interchangeable battery total.
A 800 W continuous inverter draws about 74.1 A from this 12 V bank under the stated efficiency assumption. The 3 ft feed therefore becomes 1 AWG copper, protected at 100 A and calculated at 0.57% drop. Keeping this high-current run short is usually more effective than buying around a poor layout.
All three schedule rows pass the shared ampacity and voltage-drop checks for the inputs printed here. That does not account for every field condition, including conduit fill, grouped conductors, engine-room heat, corrosion exposure or manufacturer-specific terminal limits. Treat the 200W 12V Off-Grid Solar Wiring Diagram Printable (1S1P) as a traceable calculation snapshot and have work reviewed whenever the installation falls outside its displayed assumptions.
For later comparison, keep the 200 W array, 1S2P bank and the 15/6/3 ft one-way routes together when requesting equipment quotes or an inspection review.
Wire, protection and battery schedules
Wire schedule
| Segment | Design current | One-way run | Computed conductor | Voltage drop | Sizing basis |
|---|---|---|---|---|---|
| array → controller | 16.4 A | 15 ft | 8 AWG copper | 1.91% | 156% of array Isc (NEC 690.8) |
| controller → battery | 16.7 A | 6 ft | 10 AWG copper | 2.07% | controller output at 125% continuous-load ampacity |
| battery → inverter | 74.1 A | 3 ft | 1 AWG copper | 0.57% | inverter continuous DC input at 90% efficiency and 125% ampacity |
Overcurrent protection
| Protected segment | Required ampacity | OCPD | Conductor ampacity | Verdict |
|---|---|---|---|---|
| array → controller | 16.4 A | 20 A | 40 A | within |
| controller → battery | 20.8 A | 25 A | 30 A | within |
| battery → inverter | 92.6 A | 100 A | 110 A | within |
Battery arrangement
| Arrangement | Chemistry | Units | Unit capacity | Bank capacity | Nominal energy | Nominal voltage |
|---|---|---|---|---|---|---|
| 1S2P | AGM | 2 | 120 Ah | 240 Ah | 2,880 Wh | 12 V |
Static routed parts list
Parts are computed from this passing configuration. A route appears only when the verified catalogue record proves every displayed numeric rating; all uncertain matches stay local for verification. Routed links may earn Off Grid Authority a commission at no extra cost to you.
Pre-install review steps
- Confirm the array and controller window: Verify that the 1S1P string plan produces 24 V open circuit and that the equipment is rated above the 30 V cold-design value.
- Lay out the protected DC runs: Measure the one-way paths before ordering cable, then compare them with the computed 15 ft, 6 ft and 3 ft runs shown here.
- Build complete battery strings: Arrange all 2 battery units as 1S2P; do not leave a partial series string in a 12 V bank.
- Commission against equipment instructions: Check polarity, terminal torque, DC interrupt ratings, conductor temperature ratings, ambient correction and local inspection requirements before energizing the 800 W inverter.
Customize or compare
Open the parent build guide for the surrounding design context, safety notes and installation discussion.
