What this computed plan shows

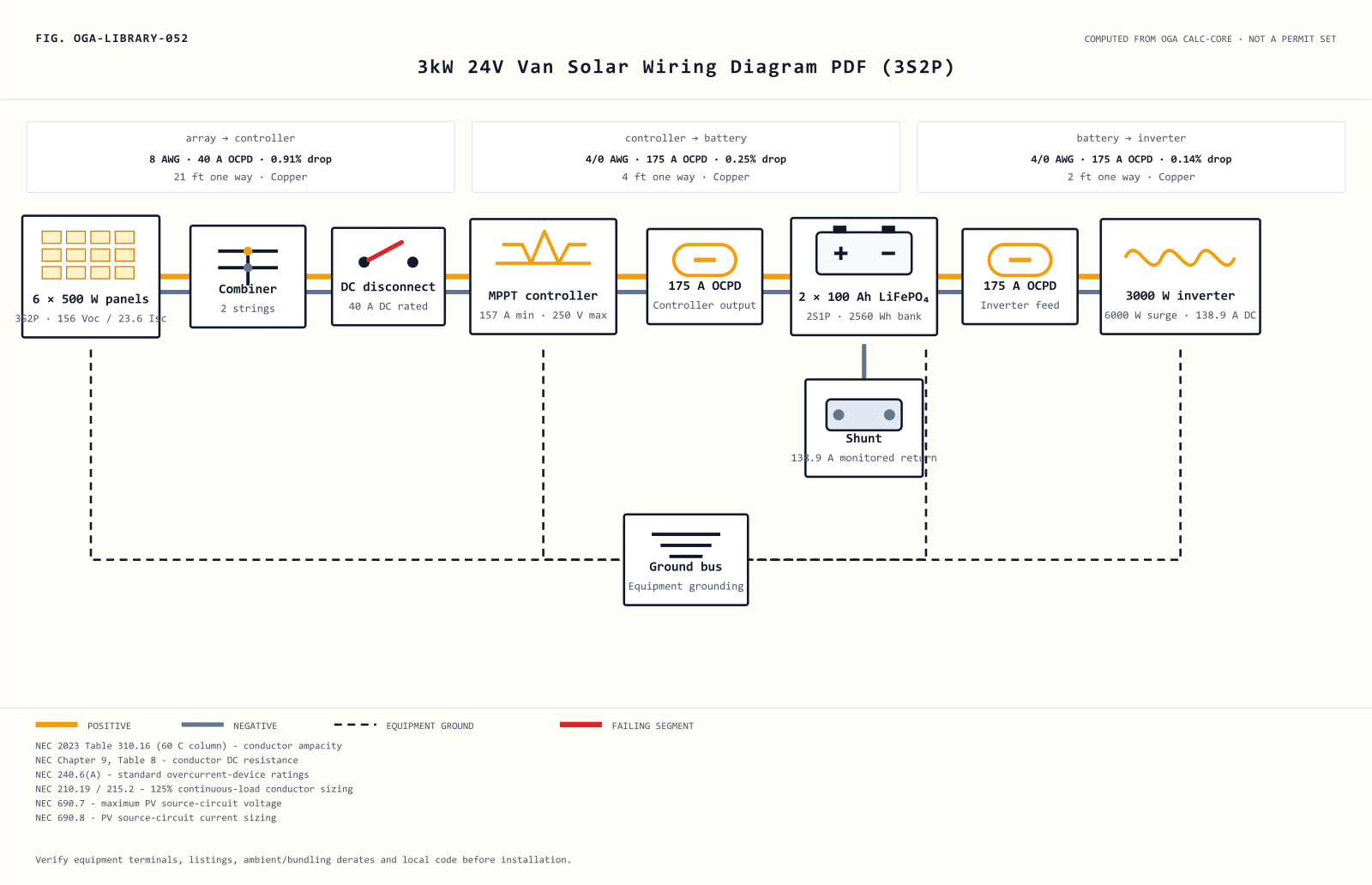

Built around a 3 kW array, the 3kW 24V Van Solar Wiring Diagram PDF (3S2P) is a computed answer to the demand phrasing “van solar power.” The diagram shows 6 modules as 3S2P, not an unspecified bank of panels, and it carries 156 Voc plus 22.7 operating amps into the controller review. Every table on this page describes that same state.
The MPPT controller needs at least 157 A of output capacity. Its PV input must also remain above the engine’s 195 V cold-design check, while the configured ceiling is 250 V. That margin matters because the diagram’s 156 V nameplate value is not the final controller comparison value.
On the first two protected runs, the schedule pairs 40 A with 8 AWG copper and 175 A with 4/0 AWG copper. The corresponding one-way distances are 21 ft and 4 ft, producing 0.91% and 0.25% drop. These values assume the stated conductor material and do not include unverified ambient or bundling derates.
A 2S1P layout keeps every battery in a complete 24 V string. Using 2 LiFePO₄ units at 100 Ah each yields 100 bank amp-hours and 2,560 nominal watt-hours. Parallel paths still need equal cable geometry, suitable disconnecting means and manufacturer-approved protection.
The battery-to-inverter path is only 2 ft, but it carries 138.9 A continuously in the calculation. That combination selects 4/0 AWG copper and 175 A protection while retaining 0.14% drop. The 6,000 W surge figure should be compared with motor or compressor starting loads separately from continuous power.
Use the parts links as a routed specification checklist, not permission to substitute unlike ratings. Before buying, confirm controller voltage, breaker interrupt rating, conductor insulation, terminal temperature class, battery series approval and inverter DC range. The customizer carries this exact 3kW 24V Van Solar Wiring Diagram PDF (3S2P) state in its URL hash so run lengths or nameplate values can be changed without editing the static drawing.
For later comparison, keep the 3 kW array, 2S1P bank and the 21/4/2 ft one-way routes together when requesting equipment quotes or an inspection review.
Wire, protection and battery schedules
Wire schedule
| Segment | Design current | One-way run | Computed conductor | Voltage drop | Sizing basis |
|---|---|---|---|---|---|
| array → controller | 36.8 A | 21 ft | 8 AWG copper | 0.91% | 156% of array Isc (NEC 690.8) |
| controller → battery | 125 A | 4 ft | 4/0 AWG copper | 0.25% | controller output at 125% continuous-load ampacity |
| battery → inverter | 138.9 A | 2 ft | 4/0 AWG copper | 0.14% | inverter continuous DC input at 90% efficiency and 125% ampacity |
Overcurrent protection
| Protected segment | Required ampacity | OCPD | Conductor ampacity | Verdict |
|---|---|---|---|---|
| array → controller | 36.8 A | 40 A | 40 A | within |
| controller → battery | 156.3 A | 175 A | 195 A | within |
| battery → inverter | 173.6 A | 175 A | 195 A | within |
Battery arrangement
| Arrangement | Chemistry | Units | Unit capacity | Bank capacity | Nominal energy | Nominal voltage |
|---|---|---|---|---|---|---|
| 2S1P | LiFePO₄ | 2 | 100 Ah | 100 Ah | 2,560 Wh | 24 V |
Static routed parts list
Parts are computed from this passing configuration. A route appears only when the verified catalogue record proves every displayed numeric rating; all uncertain matches stay local for verification. Routed links may earn Off Grid Authority a commission at no extra cost to you.
Pre-install review steps
- Confirm the array and controller window: Verify that the 3S2P string plan produces 156 V open circuit and that the equipment is rated above the 195 V cold-design value.
- Lay out the protected DC runs: Measure the one-way paths before ordering cable, then compare them with the computed 21 ft, 4 ft and 2 ft runs shown here.
- Build complete battery strings: Arrange all 2 battery units as 2S1P; do not leave a partial series string in a 24 V bank.
- Commission against equipment instructions: Check polarity, terminal torque, DC interrupt ratings, conductor temperature ratings, ambient correction and local inspection requirements before energizing the 3,000 W inverter.
Customize or compare
Open the parent build guide for the surrounding design context, safety notes and installation discussion.
