1200W 24V Off-Grid Cabin Solar Wiring Diagram Printable (2S2P)
Computed 1200W 24V cabin solar diagram: 2S2P array, wire gauges, OCPD, battery arrangement, routed parts and printable files.

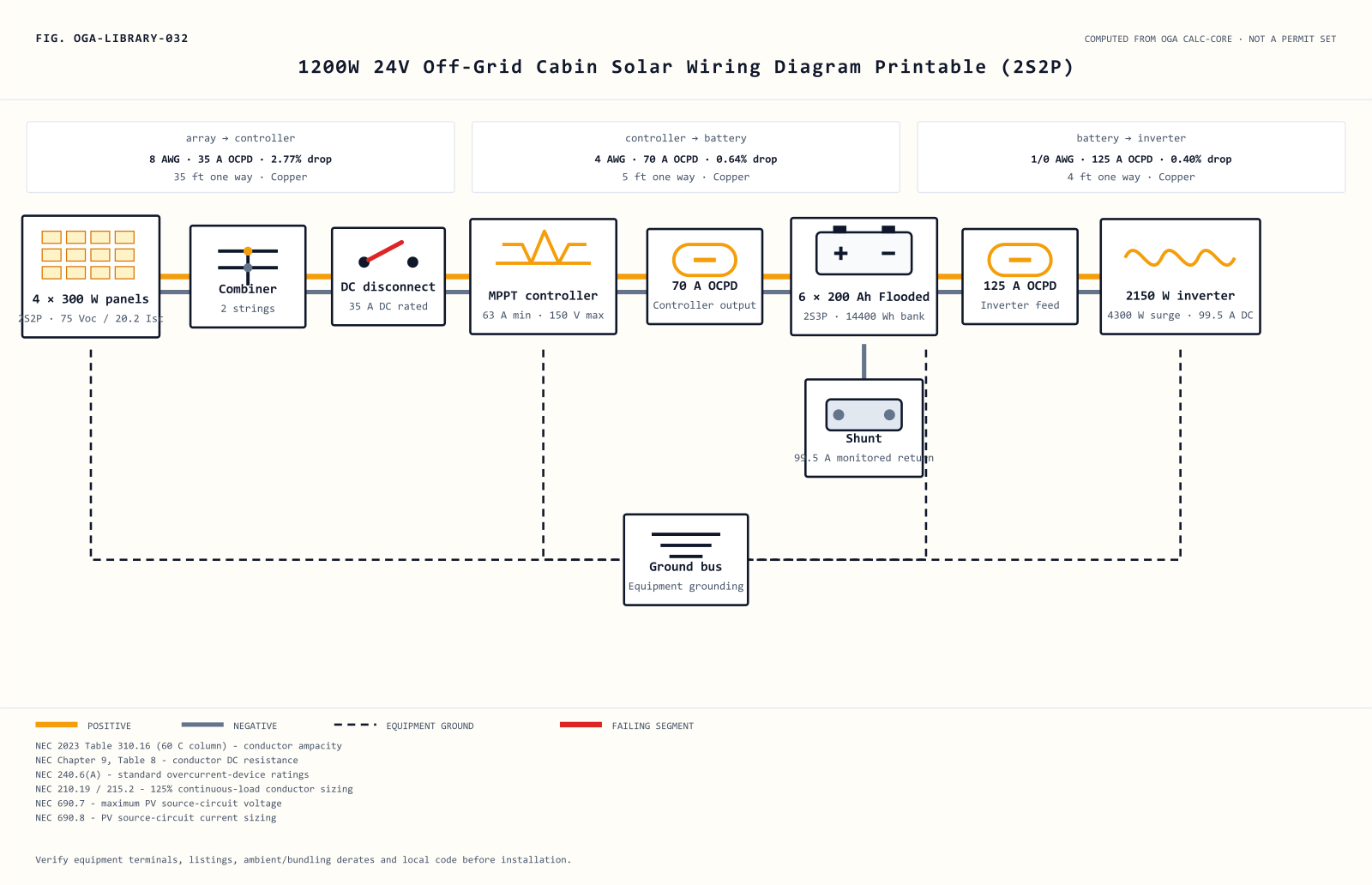

View the scalable diagram inline
What this computed plan shows
Searchers asking for “best off grid cabin solar system” usually need more than a block diagram. This 1200W 24V Off-Grid Cabin Solar Wiring Diagram Printable (2S2P) therefore fixes the panel count, string arrangement, controller window, storage layout and inverter feed as one computed cabin example. With 4 panels wired 2S2P, the array totals 1,200 W and reaches 75 Voc at nameplate conditions.
The MPPT controller needs at least 63 A of output capacity. Its PV input must also remain above the engine’s 93.8 V cold-design check, while the configured ceiling is 150 V. That margin matters because the diagram’s 75 V nameplate value is not the final controller comparison value.
On the first two protected runs, the schedule pairs 35 A with 8 AWG copper and 70 A with 4 AWG copper. The corresponding one-way distances are 35 ft and 5 ft, producing 2.77% and 0.64% drop. These values assume the stated conductor material and do not include unverified ambient or bundling derates.
A 2S3P layout keeps every battery in a complete 24 V string. Using 6 Flooded units at 200 Ah each yields 600 bank amp-hours and 14,400 nominal watt-hours. Parallel paths still need equal cable geometry, suitable disconnecting means and manufacturer-approved protection.
The battery-to-inverter path is only 4 ft, but it carries 99.5 A continuously in the calculation. That combination selects 1/0 AWG copper and 125 A protection while retaining 0.4% drop. The 4,300 W surge figure should be compared with motor or compressor starting loads separately from continuous power.
Use the parts links as a routed specification checklist, not permission to substitute unlike ratings. Before buying, confirm controller voltage, breaker interrupt rating, conductor insulation, terminal temperature class, battery series approval and inverter DC range. The customizer carries this exact 1200W 24V Off-Grid Cabin Solar Wiring Diagram Printable (2S2P) state in its URL hash so run lengths or nameplate values can be changed without editing the static drawing.
For later comparison, keep the 1,200 W array, 2S3P bank and the 35/5/4 ft one-way routes together when requesting equipment quotes or an inspection review.
Wire, protection and battery schedules
Wire schedule
| Segment | Design current | One-way run | Computed conductor | Voltage drop | Sizing basis |
|---|---|---|---|---|---|
| array → controller | 31.5 A | 35 ft | 8 AWG copper | 2.77% | 156% of array Isc (NEC 690.8) |
| controller → battery | 50 A | 5 ft | 4 AWG copper | 0.64% | controller output at 125% continuous-load ampacity |
| battery → inverter | 99.5 A | 4 ft | 1/0 AWG copper | 0.4% | inverter continuous DC input at 90% efficiency and 125% ampacity |
Overcurrent protection
| Protected segment | Required ampacity | OCPD | Conductor ampacity | Verdict |
|---|---|---|---|---|
| array → controller | 31.5 A | 35 A | 40 A | within |
| controller → battery | 62.5 A | 70 A | 70 A | within |
| battery → inverter | 124.4 A | 125 A | 125 A | within |
Battery arrangement
| Arrangement | Chemistry | Units | Unit capacity | Bank capacity | Nominal energy | Nominal voltage |
|---|---|---|---|---|---|---|
| 2S3P | Flooded | 6 | 200 Ah | 600 Ah | 14,400 Wh | 24 V |
Static routed parts list
Parts are computed from this passing configuration. A route appears only when the verified catalogue record proves every displayed numeric rating; all uncertain matches stay local for verification. Routed links may earn Off Grid Authority a commission at no extra cost to you.
Pre-install review steps
- Confirm the array and controller window: Verify that the 2S2P string plan produces 75 V open circuit and that the equipment is rated above the 93.8 V cold-design value.
- Lay out the protected DC runs: Measure the one-way paths before ordering cable, then compare them with the computed 35 ft, 5 ft and 4 ft runs shown here.
- Build complete battery strings: Arrange all 6 battery units as 2S3P; do not leave a partial series string in a 24 V bank.
- Commission against equipment instructions: Check polarity, terminal torque, DC interrupt ratings, conductor temperature ratings, ambient correction and local inspection requirements before energizing the 2,150 W inverter.
Customize or compare
Open the parent build guide for the surrounding design context, safety notes and installation discussion.
