3150W 24V Off-Grid Cabin Solar Wiring Diagram with Battery (3S3P)
Computed 3150W 24V cabin solar diagram: 3S3P array, wire gauges, OCPD, battery arrangement, routed parts and printable files.
View the scalable diagram inline
What this computed plan shows

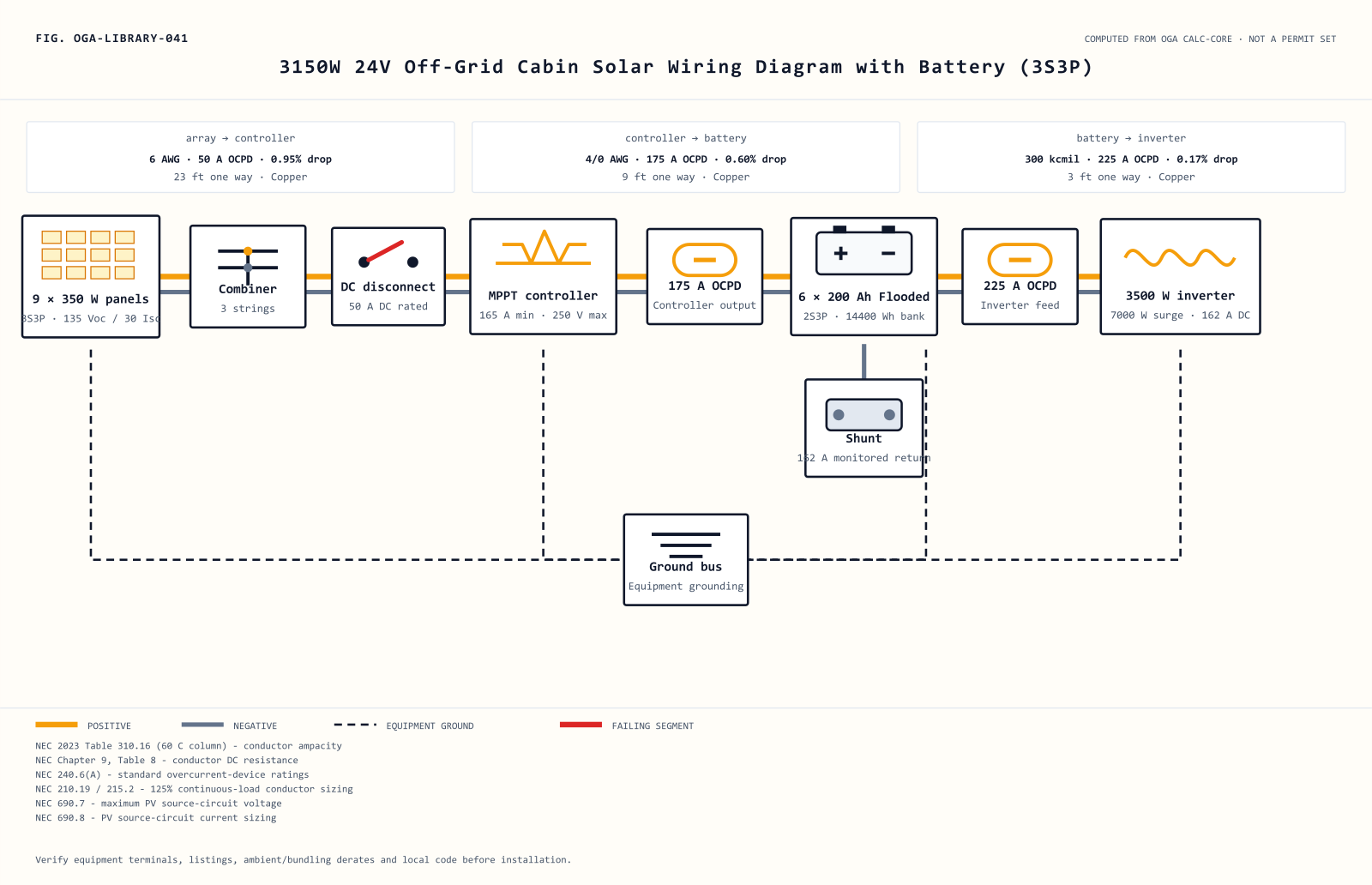

This cabin drawing starts with 9 × 350 W modules and ends with a protected 3,500 W inverter feed. Between those points, the 3150W 24V Off-Grid Cabin Solar Wiring Diagram with Battery (3S3P) preserves the exact 3S3P topology and 24 V bank selected in the catalogue. The drawing and schedules are regenerated from one shared system object to prevent labels from drifting apart.
Controller sizing follows two separate limits in this cabin configuration. Power conversion calls for 165 A or more at the battery side, and cold-array allowance raises the PV check from 135 V nameplate Voc to 168.8 V. The selected MPPT envelope is 180 A and 250 V.
Conductor results change from one section of the 3150W 24V Off-Grid Cabin Solar Wiring Diagram with Battery (3S3P) to the next. Across 23 ft, the PV side selects 6 AWG copper at 0.95% drop; across 9 ft, the charging side selects 4/0 AWG copper at 0.6%. Their respective 50 A and 175 A devices are listed separately so one rating is never copied into the other circuit.
For storage, the computed arrangement is 2S3P, assembled from 6 × 200 Ah Flooded batteries. Series connection establishes the 24 V nominal level, while parallel strings bring the bank to 600 Ah. The displayed 14,400 Wh is nominal capacity rather than a promise of daily usable energy.
The inverter contributes 162 A of continuous DC input at the engine’s efficiency assumption. Over a 3 ft one-way cable path, 300 kcmil copper and a 225 A protective device keep calculated drop at 0.17%. Its 7,000 W surge label is recorded for equipment comparison, but the schedule must still be checked against the chosen inverter manual.
This page stays inside the verified engine boundary: every component and conductor currently returns a within verdict. A different panel label, longer run, hotter ambient or changed battery count can alter that result, so follow the customize link rather than scaling the picture by intuition. Local rules, equipment listings and inspection requirements take precedence over this planning aid.
For later comparison, keep the 3,150 W array, 2S3P bank and the 23/9/3 ft one-way routes together when requesting equipment quotes or an inspection review.
Wire, protection and battery schedules
Wire schedule
| Segment | Design current | One-way run | Computed conductor | Voltage drop | Sizing basis |
|---|---|---|---|---|---|
| array → controller | 46.8 A | 23 ft | 6 AWG copper | 0.95% | 156% of array Isc (NEC 690.8) |
| controller → battery | 131.3 A | 9 ft | 4/0 AWG copper | 0.6% | controller output at 125% continuous-load ampacity |
| battery → inverter | 162 A | 3 ft | 300 kcmil copper | 0.17% | inverter continuous DC input at 90% efficiency and 125% ampacity |
Overcurrent protection
| Protected segment | Required ampacity | OCPD | Conductor ampacity | Verdict |
|---|---|---|---|---|
| array → controller | 46.8 A | 50 A | 55 A | within |
| controller → battery | 164.1 A | 175 A | 195 A | within |
| battery → inverter | 202.5 A | 225 A | 240 A | within |
Battery arrangement
| Arrangement | Chemistry | Units | Unit capacity | Bank capacity | Nominal energy | Nominal voltage |
|---|---|---|---|---|---|---|
| 2S3P | Flooded | 6 | 200 Ah | 600 Ah | 14,400 Wh | 24 V |
Static routed parts list
Parts are computed from this passing configuration. A route appears only when the verified catalogue record proves every displayed numeric rating; all uncertain matches stay local for verification. Routed links may earn Off Grid Authority a commission at no extra cost to you.
Pre-install review steps
- Confirm the array and controller window: Verify that the 3S3P string plan produces 135 V open circuit and that the equipment is rated above the 168.8 V cold-design value.
- Lay out the protected DC runs: Measure the one-way paths before ordering cable, then compare them with the computed 23 ft, 9 ft and 3 ft runs shown here.
- Build complete battery strings: Arrange all 6 battery units as 2S3P; do not leave a partial series string in a 24 V bank.
- Commission against equipment instructions: Check polarity, terminal torque, DC interrupt ratings, conductor temperature ratings, ambient correction and local inspection requirements before energizing the 3,500 W inverter.
Customize or compare
Open the parent build guide for the surrounding design context, safety notes and installation discussion.
