200W 12V Off-Grid Cabin Solar Wiring Diagram with Battery (1S1P)

Computed 200W 12V cabin solar diagram: 1S1P array, wire gauges, OCPD, battery arrangement, routed parts and printable files.

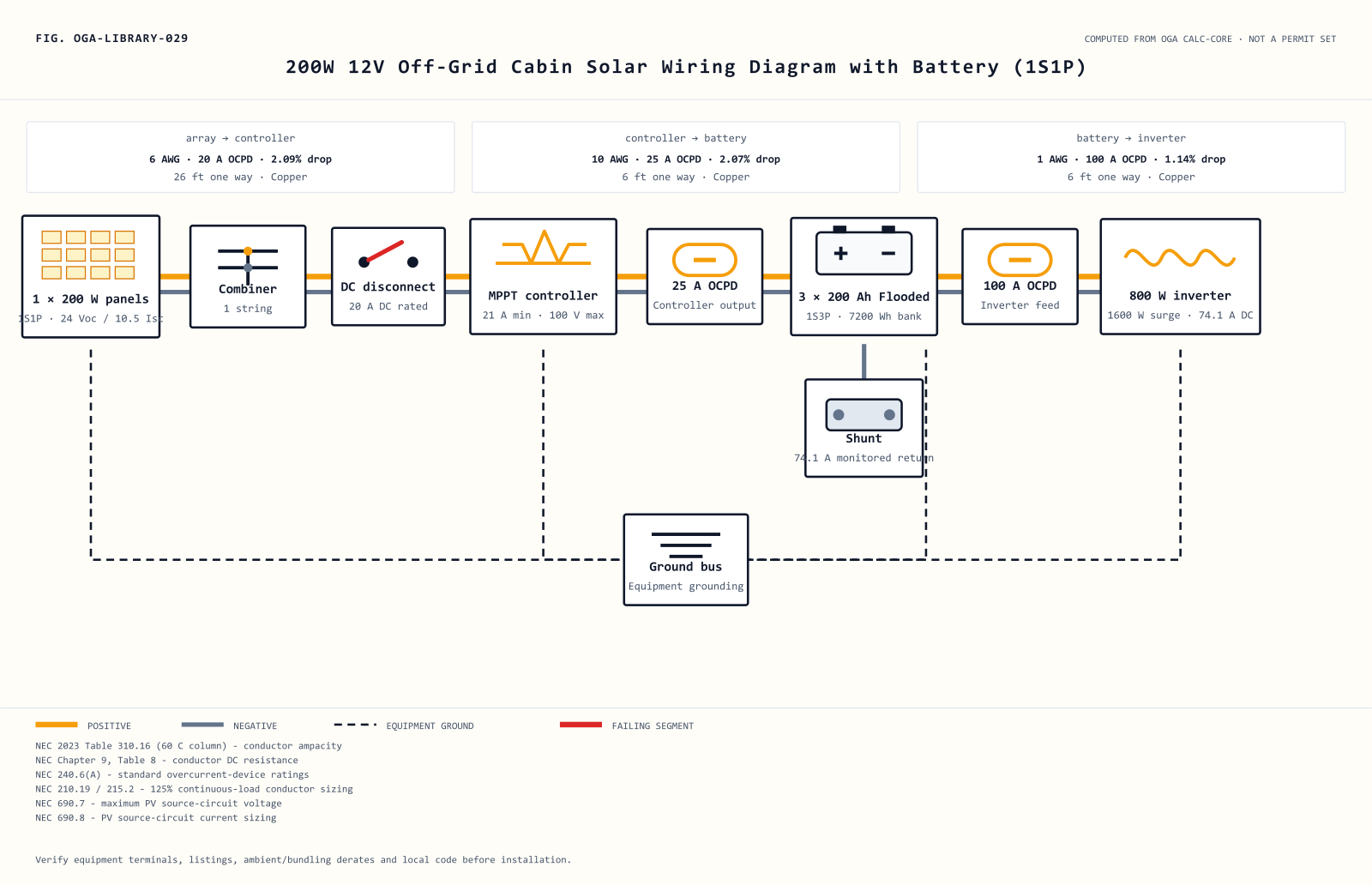

200W 12V Off-Grid Cabin Solar Wiring Diagram with Battery (1S1P) showing 1S1P panels, MPPT controller, 1S3P battery bank, wire gauges and OCPD ratings
Computed from the values printed in the schedules below; not a permit set.
Download SVGDownload 1600 px PNGDownload 800 px PNGDownload PDF
View the scalable diagram inline200W 12V Off-Grid Cabin Solar Wiring Diagram with Battery (1S1P)Computed 1S1P schematic for a 200 W 12 V cabin system, including wire and OCPD labels.FIG. OGA-LIBRARY-029200W 12V Off-Grid Cabin Solar Wiring Diagram with Battery (1S1P)COMPUTED FROM OGA CALC-CORE · NOT A PERMIT SET6 AWG · 20 A OCPD · 2.09% drop10 AWG · 25 A OCPD · 2.07% drop1 AWG · 100 A OCPD · 1.14% drop1 × 200 W panels1S1P · 24 Voc / 10.5 IscCombiner1 stringDC disconnect20 A DC ratedMPPT controller21 A min · 100 V max25 A OCPDController output3 × 200 Ah Flooded1S3P · 7200 Wh bank100 A OCPDInverter feed800 W inverter1600 W surge · 74.1 A DCShunt74.1 A monitored returnGround busEquipment groundingarray → controller6 AWG · 20 A OCPD · 2.09% drop26 ft one way · Coppercontroller → battery10 AWG · 25 A OCPD · 2.07% drop6 ft one way · Copperbattery → inverter1 AWG · 100 A OCPD · 1.14% drop6 ft one way · CopperPOSITIVENEGATIVEEQUIPMENT GROUNDFAILING SEGMENTNEC 2023 Table 310.16 (60 C column) - conductor ampacityNEC Chapter 9, Table 8 - conductor DC resistanceNEC 240.6(A) - standard overcurrent-device ratingsNEC 210.19 / 215.2 - 125% continuous-load conductor sizingNEC 690.7 - maximum PV source-circuit voltageNEC 690.8 - PV source-circuit current sizingVerify equipment terminals, listings, ambient/bundling derates and local code before installation.

What this computed plan shows

This cabin drawing starts with 1 × 200 W modules and ends with a protected 800 W inverter feed. Between those points, the 200W 12V Off-Grid Cabin Solar Wiring Diagram with Battery (1S1P) preserves the exact 1S1P topology and 12 V bank selected in the catalogue. The drawing and schedules are regenerated from one shared system object to prevent labels from drifting apart.

Controller sizing follows two separate limits in this cabin configuration. Power conversion calls for 21 A or more at the battery side, and cold-array allowance raises the PV check from 24 V nameplate Voc to 30 V. The selected MPPT envelope is 40 A and 100 V.

The array-to-controller route is 26 ft one way and carries 16.4 design amps. It resolves to 6 AWG copper, a 20 A OCPD and 2.09% calculated drop. Downstream, the 6 ft controller lead uses 10 AWG copper behind 25 A protection, holding its computed drop to 2.07%.

For storage, the computed arrangement is 1S3P, assembled from 3 × 200 Ah Flooded batteries. Series connection establishes the 12 V nominal level, while parallel strings bring the bank to 600 Ah. The displayed 7,200 Wh is nominal capacity rather than a promise of daily usable energy.

The inverter contributes 74.1 A of continuous DC input at the engine’s efficiency assumption. Over a 6 ft one-way cable path, 1 AWG copper and a 100 A protective device keep calculated drop at 1.14%. Its 1,600 W surge label is recorded for equipment comparison, but the schedule must still be checked against the chosen inverter manual.

This page stays inside the verified engine boundary: every component and conductor currently returns a within verdict. A different panel label, longer run, hotter ambient or changed battery count can alter that result, so follow the customize link rather than scaling the picture by intuition. Local rules, equipment listings and inspection requirements take precedence over this planning aid.

For later comparison, keep the 200 W array, 1S3P bank and the 26/6/6 ft one-way routes together when requesting equipment quotes or an inspection review.

Wire, protection and battery schedules

Wire schedule

SegmentDesign currentOne-way runComputed conductorVoltage dropSizing basis
array → controller16.4 A26 ft6 AWG copper2.09%156% of array Isc (NEC 690.8)
controller → battery16.7 A6 ft10 AWG copper2.07%controller output at 125% continuous-load ampacity
battery → inverter74.1 A6 ft1 AWG copper1.14%inverter continuous DC input at 90% efficiency and 125% ampacity

Overcurrent protection

Protected segmentRequired ampacityOCPDConductor ampacityVerdict
array → controller16.4 A20 A55 Awithin
controller → battery20.8 A25 A30 Awithin
battery → inverter92.6 A100 A110 Awithin

Battery arrangement

ArrangementChemistryUnitsUnit capacityBank capacityNominal energyNominal voltage
1S3PFlooded3200 Ah600 Ah7,200 Wh12 V

Static routed parts list

Parts are computed from this passing configuration. A route appears only when the verified catalogue record proves every displayed numeric rating; all uncertain matches stay local for verification. Routed links may earn Off Grid Authority a commission at no extra cost to you.

1 × 200 W solar panelVoc 24 V, Vmp 20 V, Isc 10.5 AVerify locally — no proven catalogue match
3 × 200 Ah Flooded battery1S3P bank, 7200 Wh nominalVerify locally — no proven catalogue match
60 ft × 6 AWG Copper cableTHHN/THWN-2 copper (or UL-listed battery cable), 75°C+Verify locally — no proven catalogue match
2 × Ring/lug terminalstinned, sized for 6 AWGVerify locally — no proven catalogue match
1 × 20 A breaker / fuseDC-rated, 20 V system — must not exceed the wire's 55 A ratingVerify locally — no proven catalogue match
1 pr × Heat-shrink + ferrulesadhesive-lined, color-codedVerify locally — no proven catalogue match
20 ft × 10 AWG Copper cableTHHN/THWN-2 copper (or UL-listed battery cable), 75°C+Verify locally — no proven catalogue match
2 × Ring/lug terminalstinned, sized for 10 AWGVerify locally — no proven catalogue match
1 × 25 A breaker / fuseDC-rated, 12 V system — must not exceed the wire's 30 A ratingVerify locally — no proven catalogue match
1 pr × Heat-shrink + ferrulesadhesive-lined, color-codedVerify locally — no proven catalogue match
20 ft × 1 AWG Copper cableTHHN/THWN-2 copper (or UL-listed battery cable), 75°C+Verify locally — no proven catalogue match
2 × Ring/lug terminalstinned, sized for 1 AWGVerify locally — no proven catalogue match
1 × 100 A breaker / fuseDC-rated, 12 V system — must not exceed the wire's 110 A ratingVerify locally — no proven catalogue match
1 pr × Heat-shrink + ferrulesadhesive-lined, color-codedVerify locally — no proven catalogue match

Pre-install review steps

  1. Confirm the array and controller window: Verify that the 1S1P string plan produces 24 V open circuit and that the equipment is rated above the 30 V cold-design value.
  2. Lay out the protected DC runs: Measure the one-way paths before ordering cable, then compare them with the computed 26 ft, 6 ft and 6 ft runs shown here.
  3. Build complete battery strings: Arrange all 3 battery units as 1S3P; do not leave a partial series string in a 12 V bank.
  4. Commission against equipment instructions: Check polarity, terminal torque, DC interrupt ratings, conductor temperature ratings, ambient correction and local inspection requirements before energizing the 800 W inverter.
