2100W 48V RV Solar Wiring Diagram PDF (3S2P)
Computed 2100W 48V rv / camper solar diagram: 3S2P array, wire gauges, OCPD, battery arrangement, routed parts and printable files.
View the scalable diagram inline
What this computed plan shows

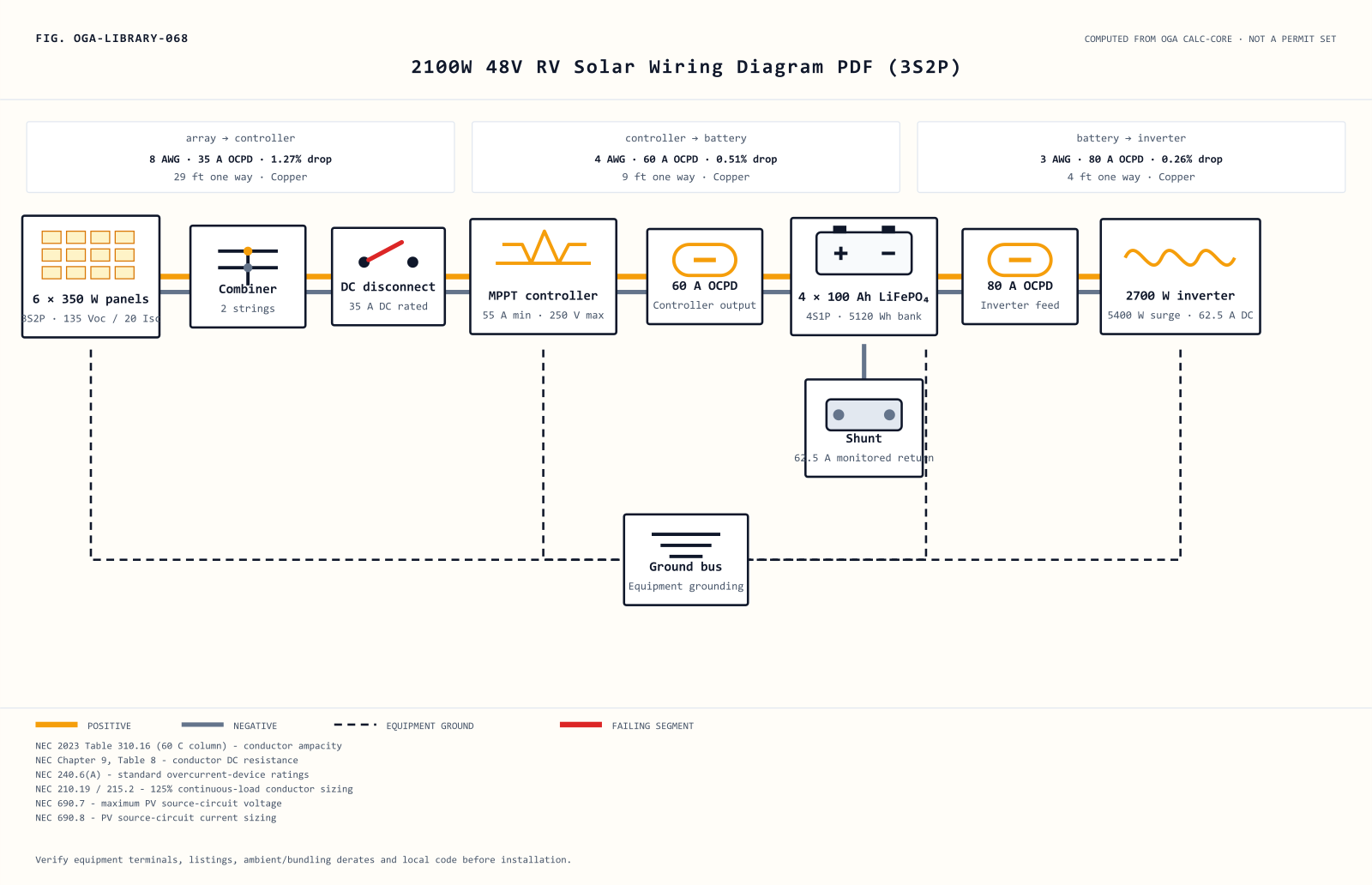

Searchers asking for “rv solar panel wiring diagram pdf” usually need more than a block diagram. This 2100W 48V RV Solar Wiring Diagram PDF (3S2P) therefore fixes the panel count, string arrangement, controller window, storage layout and inverter feed as one computed rv / camper example. With 6 panels wired 3S2P, the array totals 2,100 W and reaches 135 Voc at nameplate conditions.
The MPPT controller needs at least 55 A of output capacity. Its PV input must also remain above the engine’s 168.8 V cold-design check, while the configured ceiling is 250 V. That margin matters because the diagram’s 135 V nameplate value is not the final controller comparison value.
PV current is evaluated at 31.2 A for the 29 ft array run, which selects 8 AWG copper plus a 35 A OCPD. Charging current is 43.8 A across 9 ft, moving the recommendation to 4 AWG copper with 60 A protection. Each percentage in the table is a round-trip voltage-drop calculation.
A 4S1P layout keeps every battery in a complete 48 V string. Using 4 LiFePO₄ units at 100 Ah each yields 100 bank amp-hours and 5,120 nominal watt-hours. Parallel paths still need equal cable geometry, suitable disconnecting means and manufacturer-approved protection.
The battery-to-inverter path is only 4 ft, but it carries 62.5 A continuously in the calculation. That combination selects 3 AWG copper and 80 A protection while retaining 0.26% drop. The 5,400 W surge figure should be compared with motor or compressor starting loads separately from continuous power.
Use the parts links as a routed specification checklist, not permission to substitute unlike ratings. Before buying, confirm controller voltage, breaker interrupt rating, conductor insulation, terminal temperature class, battery series approval and inverter DC range. The customizer carries this exact 2100W 48V RV Solar Wiring Diagram PDF (3S2P) state in its URL hash so run lengths or nameplate values can be changed without editing the static drawing.
For later comparison, keep the 2,100 W array, 4S1P bank and the 29/9/4 ft one-way routes together when requesting equipment quotes or an inspection review.
Wire, protection and battery schedules
Wire schedule
| Segment | Design current | One-way run | Computed conductor | Voltage drop | Sizing basis |
|---|---|---|---|---|---|
| array → controller | 31.2 A | 29 ft | 8 AWG copper | 1.27% | 156% of array Isc (NEC 690.8) |
| controller → battery | 43.8 A | 9 ft | 4 AWG copper | 0.51% | controller output at 125% continuous-load ampacity |
| battery → inverter | 62.5 A | 4 ft | 3 AWG copper | 0.26% | inverter continuous DC input at 90% efficiency and 125% ampacity |
Overcurrent protection
| Protected segment | Required ampacity | OCPD | Conductor ampacity | Verdict |
|---|---|---|---|---|
| array → controller | 31.2 A | 35 A | 40 A | within |
| controller → battery | 54.7 A | 60 A | 70 A | within |
| battery → inverter | 78.1 A | 80 A | 85 A | within |
Battery arrangement
| Arrangement | Chemistry | Units | Unit capacity | Bank capacity | Nominal energy | Nominal voltage |
|---|---|---|---|---|---|---|
| 4S1P | LiFePO₄ | 4 | 100 Ah | 100 Ah | 5,120 Wh | 48 V |
Static routed parts list
Parts are computed from this passing configuration. A route appears only when the verified catalogue record proves every displayed numeric rating; all uncertain matches stay local for verification. Routed links may earn Off Grid Authority a commission at no extra cost to you.
Pre-install review steps
- Confirm the array and controller window: Verify that the 3S2P string plan produces 135 V open circuit and that the equipment is rated above the 168.8 V cold-design value.
- Lay out the protected DC runs: Measure the one-way paths before ordering cable, then compare them with the computed 29 ft, 9 ft and 4 ft runs shown here.
- Build complete battery strings: Arrange all 4 battery units as 4S1P; do not leave a partial series string in a 48 V bank.
- Commission against equipment instructions: Check polarity, terminal torque, DC interrupt ratings, conductor temperature ratings, ambient correction and local inspection requirements before energizing the 2,700 W inverter.
Customize or compare
Open the parent build guide for the surrounding design context, safety notes and installation discussion.
