2100W 48V Tiny Home Solar Wiring Diagram Complete (3S2P)

Computed 2100W 48V tiny home solar diagram: 3S2P array, wire gauges, OCPD, battery arrangement, routed parts and printable files.

2100W 48V Tiny Home Solar Wiring Diagram Complete (3S2P) showing 3S2P panels, MPPT controller, 4S3P battery bank, wire gauges and OCPD ratings
Computed from the values printed in the schedules below; not a permit set.

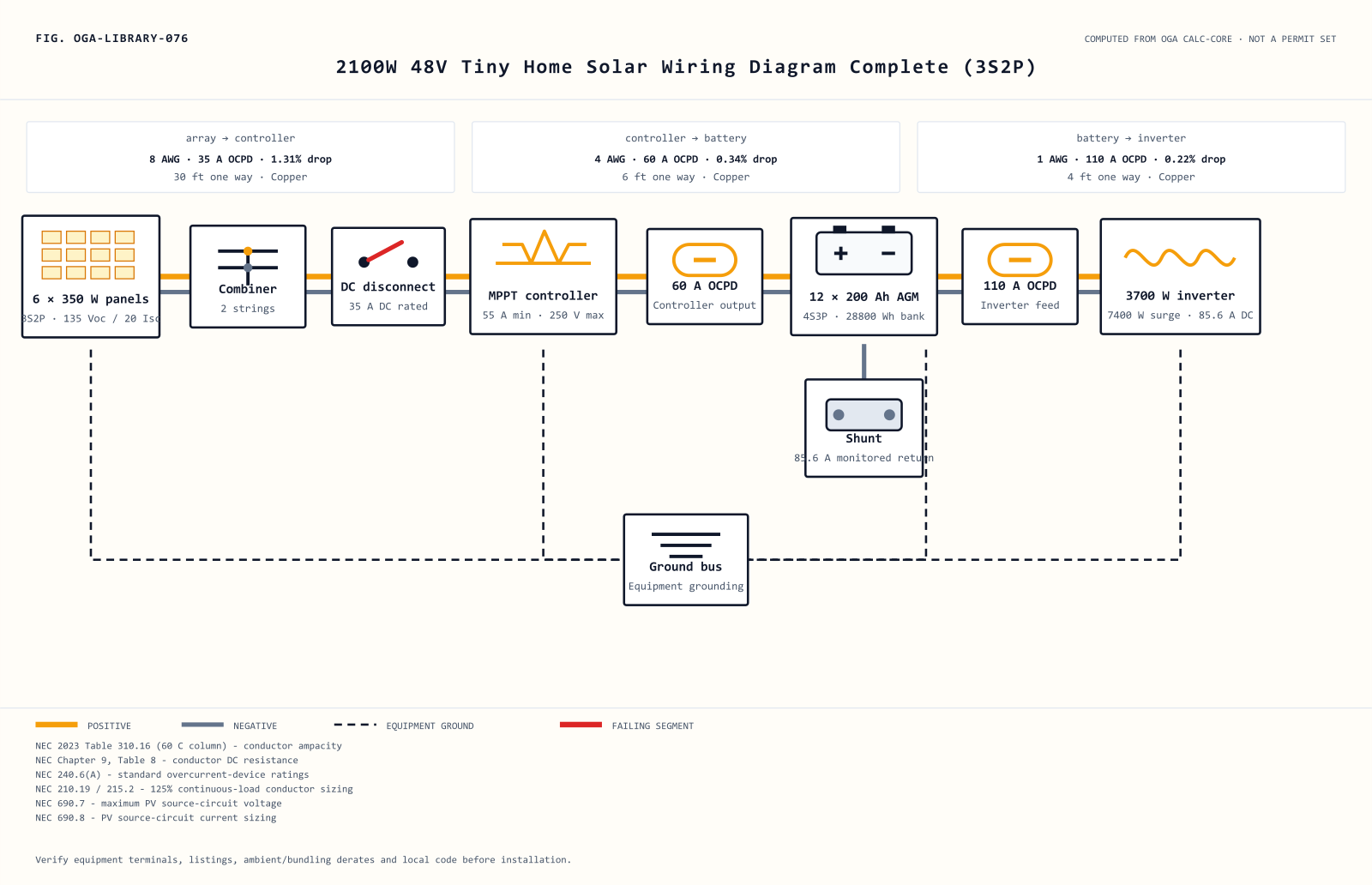

View the scalable diagram inline2100W 48V Tiny Home Solar Wiring Diagram Complete (3S2P)Computed 3S2P schematic for a 2,100 W 48 V tiny home system, including wire and OCPD labels.FIG. OGA-LIBRARY-0762100W 48V Tiny Home Solar Wiring Diagram Complete (3S2P)COMPUTED FROM OGA CALC-CORE · NOT A PERMIT SET8 AWG · 35 A OCPD · 1.31% drop4 AWG · 60 A OCPD · 0.34% drop1 AWG · 110 A OCPD · 0.22% drop6 × 350 W panels3S2P · 135 Voc / 20 IscCombiner2 stringsDC disconnect35 A DC ratedMPPT controller55 A min · 250 V max60 A OCPDController output12 × 200 Ah AGM4S3P · 28800 Wh bank110 A OCPDInverter feed3700 W inverter7400 W surge · 85.6 A DCShunt85.6 A monitored returnGround busEquipment groundingarray → controller8 AWG · 35 A OCPD · 1.31% drop30 ft one way · Coppercontroller → battery4 AWG · 60 A OCPD · 0.34% drop6 ft one way · Copperbattery → inverter1 AWG · 110 A OCPD · 0.22% drop4 ft one way · CopperPOSITIVENEGATIVEEQUIPMENT GROUNDFAILING SEGMENTNEC 2023 Table 310.16 (60 C column) - conductor ampacityNEC Chapter 9, Table 8 - conductor DC resistanceNEC 240.6(A) - standard overcurrent-device ratingsNEC 210.19 / 215.2 - 125% continuous-load conductor sizingNEC 690.7 - maximum PV source-circuit voltageNEC 690.8 - PV source-circuit current sizingVerify equipment terminals, listings, ambient/bundling derates and local code before installation.

What this computed plan shows

Built around a 2,100 W array, the 2100W 48V Tiny Home Solar Wiring Diagram Complete (3S2P) is a computed answer to the demand phrasing “solar power system for tiny home.” The diagram shows 6 modules as 3S2P, not an unspecified bank of panels, and it carries 135 Voc plus 18.9 operating amps into the controller review. Every table on this page describes that same state.

The MPPT controller needs at least 55 A of output capacity. Its PV input must also remain above the engine’s 168.8 V cold-design check, while the configured ceiling is 250 V. That margin matters because the diagram’s 135 V nameplate value is not the final controller comparison value.

Conductor results change from one section of the 2100W 48V Tiny Home Solar Wiring Diagram Complete (3S2P) to the next. Across 30 ft, the PV side selects 8 AWG copper at 1.31% drop; across 6 ft, the charging side selects 4 AWG copper at 0.34%. Their respective 35 A and 60 A devices are listed separately so one rating is never copied into the other circuit.

A 4S3P layout keeps every battery in a complete 48 V string. Using 12 AGM units at 200 Ah each yields 600 bank amp-hours and 28,800 nominal watt-hours. Parallel paths still need equal cable geometry, suitable disconnecting means and manufacturer-approved protection.

The battery-to-inverter path is only 4 ft, but it carries 85.6 A continuously in the calculation. That combination selects 1 AWG copper and 110 A protection while retaining 0.22% drop. The 7,400 W surge figure should be compared with motor or compressor starting loads separately from continuous power.

Use the parts links as a routed specification checklist, not permission to substitute unlike ratings. Before buying, confirm controller voltage, breaker interrupt rating, conductor insulation, terminal temperature class, battery series approval and inverter DC range. The customizer carries this exact 2100W 48V Tiny Home Solar Wiring Diagram Complete (3S2P) state in its URL hash so run lengths or nameplate values can be changed without editing the static drawing.

For later comparison, keep the 2,100 W array, 4S3P bank and the 30/6/4 ft one-way routes together when requesting equipment quotes or an inspection review.

Wire, protection and battery schedules

Wire schedule

SegmentDesign currentOne-way runComputed conductorVoltage dropSizing basis
array → controller31.2 A30 ft8 AWG copper1.31%156% of array Isc (NEC 690.8)
controller → battery43.8 A6 ft4 AWG copper0.34%controller output at 125% continuous-load ampacity
battery → inverter85.6 A4 ft1 AWG copper0.22%inverter continuous DC input at 90% efficiency and 125% ampacity

Overcurrent protection

Protected segmentRequired ampacityOCPDConductor ampacityVerdict
array → controller31.2 A35 A40 Awithin
controller → battery54.7 A60 A70 Awithin
battery → inverter107.1 A110 A110 Awithin

Battery arrangement

ArrangementChemistryUnitsUnit capacityBank capacityNominal energyNominal voltage
4S3PAGM12200 Ah600 Ah28,800 Wh48 V

Static routed parts list

Parts are computed from this passing configuration. A route appears only when the verified catalogue record proves every displayed numeric rating; all uncertain matches stay local for verification. Routed links may earn Off Grid Authority a commission at no extra cost to you.

6 × 350 W solar panelVoc 45 V, Vmp 37 V, Isc 10 AVerify locally — no proven catalogue match
1 × MPPT charge controllerat least 55 A output and 169 V PV inputVerify locally — no proven catalogue match
12 × 200 Ah AGM battery4S3P bank, 28800 Wh nominalVerify locally — no proven catalogue match
1 × 3700 W inverter7400 W surge, 48 V DC inputVerify locally — no proven catalogue match
70 ft × 8 AWG Copper cableTHHN/THWN-2 copper (or UL-listed battery cable), 75°C+Verify locally — no proven catalogue match
2 × Ring/lug terminalstinned, sized for 8 AWGVerify locally — no proven catalogue match
1 × 35 A breaker / fuseDC-rated, 111 V system — must not exceed the wire's 40 A ratingVerify locally — no proven catalogue match
1 pr × Heat-shrink + ferrulesadhesive-lined, color-codedVerify locally — no proven catalogue match
20 ft × 4 AWG Copper cableTHHN/THWN-2 copper (or UL-listed battery cable), 75°C+Verify locally — no proven catalogue match
2 × Ring/lug terminalstinned, sized for 4 AWGVerify locally — no proven catalogue match
1 × 60 A breaker / fuseDC-rated, 48 V system — must not exceed the wire's 70 A ratingVerify locally — no proven catalogue match
1 pr × Heat-shrink + ferrulesadhesive-lined, color-codedVerify locally — no proven catalogue match
15 ft × 1 AWG Copper cableTHHN/THWN-2 copper (or UL-listed battery cable), 75°C+Verify locally — no proven catalogue match
2 × Ring/lug terminalstinned, sized for 1 AWGVerify locally — no proven catalogue match
1 × 110 A breaker / fuseDC-rated, 48 V system — must not exceed the wire's 110 A ratingVerify locally — no proven catalogue match
1 pr × Heat-shrink + ferrulesadhesive-lined, color-codedVerify locally — no proven catalogue match

Pre-install review steps

  1. Confirm the array and controller window: Verify that the 3S2P string plan produces 135 V open circuit and that the equipment is rated above the 168.8 V cold-design value.
  2. Lay out the protected DC runs: Measure the one-way paths before ordering cable, then compare them with the computed 30 ft, 6 ft and 4 ft runs shown here.
  3. Build complete battery strings: Arrange all 12 battery units as 4S3P; do not leave a partial series string in a 48 V bank.
  4. Commission against equipment instructions: Check polarity, terminal torque, DC interrupt ratings, conductor temperature ratings, ambient correction and local inspection requirements before energizing the 3,700 W inverter.

Customize or compare

Customize this diagram →

Open the parent build guide for the surrounding design context, safety notes and installation discussion.
